Complexity Measures Tool for Java
Information in this document corresponds to the
CMTJava version 3.0.
CMTJava, Complexity Measures Tool for
Java, is an easy-to-use code metrics tool for the Java language. It is
intended for mature software development organizations striving for
productive development process resulting in high quality products.
Code complexity has effect on how difficult
it is to test and maintain the program.
CMTJava helps you to locate the
likely problematic complex code functions and files from big code
masses. Then you can assess them separately: put special testing
focus on them or perhaps redesign them. You can use CMTJava also for
just measuring how much code you have: physical lines, comment
lines, program lines, statements. For example measuring the whole
project code base is no problem to CMTJava.
Here are some quick links to some
of the CMTJava capabilities:
- Calculating the basic code complexity
- McCabe's cyclomatic number (can be
calculated in 4 "flavors": basic, extended (=default),
- Halstead's software science metrics
- Lines of code metrics
- Some other metrics like: number of
semicolons, number of Java comment blocks /** ... */, number of
method parameter, depth of control structure nesting
- Calculating Maintainability Index (MI)
- MI is a single number value (or index),
which expresses the relative maintainability of the code
- MI is derived with an arithmetic
formulae from the code's McCabe, Halstead and lines of code
- The used formulae is widely accepted at
the industry and is defined at various places in the
- Extremely fast processing
- CMTJava can measure many thousands of Java source
lines in a second
- Usage in the large
- In one CMTJava session you can analyze a single
file, a couple of files, your whole application, or the whole code base
of your company possibly containing
thousands of Java files
- Publishing the results in HTML
- The CMTJava report, linked to the
actual source code, can be converted to HTML form and put e.g.
to company intranet. The representation is hierarchical and
color-coded. Items whose measures are out of their acceptable
limits are highlighted in red. With one mouse click it is
possible to see the actual source code of the method or class at
- Independent of the used Java development
- CMTJava does not use, not even assume the
presence of, a Java development environment. The tool only assumes that
it can read the Java code from normal operating system source files.
- Supports Java language upto Java SE 7
- Further processing of the measurements
- CMTJava can write the measures into a
text file, which is readily suitable input for Excel (or any
other spreadsheet program), by which the measures can be
processed further, say, for various company summaries or for
- The measurements can be generated also
in XML form.
- Ease of use
- CMTJava is simple to use from the
- On Windows platform there is a GUI
layer for using the tool
- Includes thorough on-line helps in Windows, man
pages in Unix
- Can be integrated into your build scripts
for collecting the measures into the database
- Available on many platforms
intended use is:
- Use as a testing tool
- Identifies code sections which are
suspiciously complex and thus more error prone, and should be
tested more thoroughly. The limited and expensive human testing
resources can be utilized more optimally
- McCabe's cyclomatic number v(G) gives
an estimate on how many test cases at least are needed to test
all paths of a method.
- Halstead's estimated number of bugs B gives a goal
on how many bugs at least the testers should try to find from a source
- Use as a quality assurance tool
- CMTJava Complexity Measures Report as
supplementary material in code reviews
- With consistent use of CMTJava, and when the
alarms are assessed and appropriate actions are taken, there are far
better chances to come out with more maintainable software
- Enforcing company standards with regard
to accepted code complexity
- Configurable alarm limits
- Measures that are outside the limits are
highlighted in the
- Assessing foreign code
- CMTJava gives you a good overall view of the
coding style and maintainability expectations of a set of Java files
that you are supposed to take over or your subcontractor is delivering
- Use as a measuring tool
- Simply measure how much code there is
(code/comment/blank lines, files, packages, classes, interfaces,
semicolons, Java comments, etc.)
- Integrated to build scripts and collecting the
to a code metrics database
2. USE OF CMTJava
The "core component" of
CMTJava is cmtjava
on-line help for
command-line options is:
cmtjava [-h] [-H] [-c cnffiles] [-C cnfparam=value]... [-v] [-l[f]]
[-s] [-w] [-x] [-nxh] [-f filenames] [-o outfile] [srcfiles...]
And it can be used for example as follows:
cmtjava -o report.txt *.java (measure these Java files)
notepad report.txt (view the report)
dir /b /s *.java > fnames.lst (names of .java files)
dir /b /s ..\yproj\*.java >> fnames.lst (add some more...)
cmtjava -o report2.txt -f fnames.lst (measure them)
cmtjava -l -o report.xml -f fnames.lst (take "long" report, in XML)
myxmlutility -i report.xml (process onwards...)
cmtjava -x -o xreport.txt -f fnames.lst (take Excel form report)
start excel xreport.txt (start Excel on it)
The default form textual report can be converted to HTML form with the cmtjava2html
on-line help for command line options is:
cmtjava2html [-i inputfile] [-o outputdir] [-s sourcedir]...
[-nsb] [-p prefix]
-i inputfile Input Complexity Measures Report file. Default 'stdin'.
-o outputdir Output HTML directory. Default 'CMTJAVAHTML'.
-s sourcedir Source files are searched also from this directory.
-l splitsize Specify number of lines reported per page. Default 1000.
-no-html-sources Do not convert sources to HTML.
-p prefix File name prefix in generated HTML files. Default 'index'.
-nsb Do not start HTML browser automatically (only Windows).
-h Display command line help.
Start browsing from <outputdir>/<prefix>.html (default CMTJAVAHTML/index.html)
And it can be used for example as follows:
cmtjava2html -i report.txt -nsb (convert the report to HTML)
start CMTJAVAHTML\index.html (start default browser on the HTML)
This is supported on Windows. The GUI can be started in
many ways. For example, creating a shortcut on the cmtjavaui.exe on the
desktop and starting the tool by clicking it.

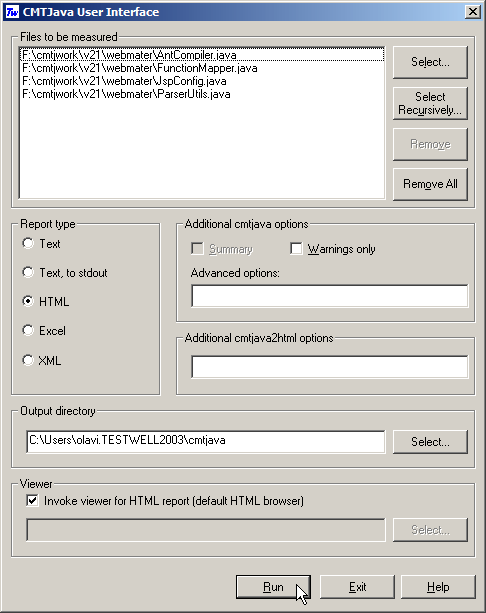

It starts the following program dialog box:
In this dialog
you can select the files to be measured and fully control
the basic cmtjava run is done.
You can specify a viewer (e.g. notepad or Excel), which
will be started on the generated report. You can also ask
the CMTJava report is further processed with cmtjava2html utility and your default
browser can be started on the HTML form report.
3. CMTJava Reports
The CMTJava reports are demonstrated here
with 4 Java source files that have been picked "as is" from the Apache Tomcat
You can study the source files by starting the HTML report
in a new window), going to the DETAILED view and clicking the links
at the file names. The files have been selected so that they would
demonstrate how CMTJava models the Java source code. Notably,
- Input to one cmtjava run
is one or more Java source files [certain summary information is
calculated for each file and for all files together (considered
- One Java source file contains one or more
top-level classes or interfaces [detailed LOC, McCabe, Halstead
and MI measures are calculated on such entities]
- A top-level class or interface contains
methods, inner classes and interfaces [detailed LOC, McCabe,
Halstead and MI measures are calculated on such entities]
- A second-level class or interface contains yet-inner
methods, classes and interfaces [detailed LOC, McCabe, Halstead and MI
measures are calculated on such entities]
3.1. Short report
In normal use, when one or only a few
files are measured, the short report is simple to use. It can be
conveniently viewed with a text editor or printed on paper.
CMTJava calculates quite many different measures of the source code,
but the measures shown in a short report are likely the most useful
ones: v(G) McCabe's cyclomatic number/control flow complexity;
the lines of code measures LOCphy, LOCpro, commenting ratio (shown as
alarm sign if
outside the limits); the Halstead measures V volume/logical "size"
and B estimated number of bugs; MI Maintainability Index.
See an example of the default short report
which has been generated effectively as follows:
cmtjava -o report.txt *.java
The short report can be restricted to contain only the measures of the
top-level classes and interfaces. See an
example of the default short summary level report
has been generated effectively as follows:
cmtjava -s -o report-s.txt *.java
reports can be further restricted to contain only the lines that
contain the alarm sign "-" on some of the measured items.
3.2. HTML report
The HTML report is an html'ized version
the short report. Additionally, if the Java source files are available,
links to them are generated facilitating viewing them also at the
When the HTML report is started a summary view is shown. It contains
the measures of the two top level classes and interfaces. Clicking on
the class/interface name you can get to a detailed view, which contains
also the measures of the methods. In the detailed view, clicking on the
class/interface/method name the actual source code is shown.
See an example of the
(started in a new window) , which has been
generated effectively as follows:
cmtjava -o report.txt *.java
cmtjava2html -i report.txt
Here the cmtjava2html
run was done so that the option -no-html-sources was not used. It means
copies of the source files are generated inside the HTML report (which
is a collection of .html files in the generated CMTJAVAHTML directory).
If that option had been used, only links to the source files would have
been generated at the location where they reside.
Further, the option
into the HTML report. They are used to display the source code
section of individual methods and classes. If your browser has
that option and so allow smooth display of the HTML report, but with
the price that individual method or class source code cannot be
3.3. Long report (in XML)
The long report is obtained
with cmtjava option -l (or -lf). It contains
measures that CMTJava calculates. The report form is XML. This report
form is meant to be used in CMTJava integrations to tool
chains. The report can be taken with operand and operator frequencies
(option -lf) or without them (option -l only). The report can be
restricted to contain top level class summary information only (option
See example of long report
(default form). See example of same report
but containing top level classes only and operand and operator
frequencies included). Effectively these two reports have been obtained
cmtjava -l -o report-l.xml *.java
cmtjava -lf -s report-lf-s.xml *.java
3.4. Excel report
The Excel report is a csv file, which can
be input to Excel for further processing. The Excel report contains
all the measures that CMTJava calculates of each measured item, a kind
of "raw data", where you can study just the measures that you are
in. From the Excel form you can also derive such graphical/summary
representations that you want.
See an example of the Excel report
has been generated effectively as follows (the methods):
cmtjava -x -o report-x.txt *.java
See another example of the Excel report
which has generated effectively as follows (the top-level classes):
cmtjava -x -s -o report-x-s.txt *.java
4. OPERATING ENVIRONMENTS
for a detailed list of machine / operating system
environments where CMTJava is currently available.
A Java development environment is not
needed for using CMTJava. However, CMTJava assumes that the source
files to be measured are "sufficiently correct" Java.
